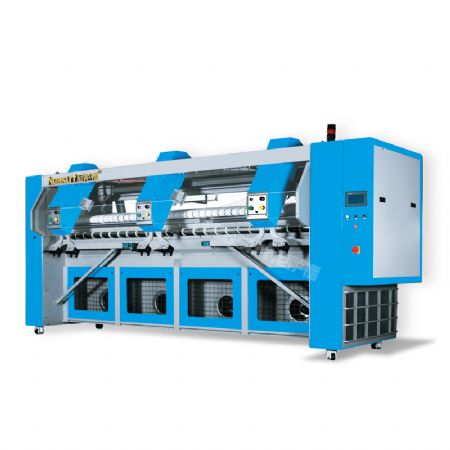

全自动展布机
本机是对床单、被套等织物进入熨平机前对其进行抹平和输送,使织物处于理想状态进行熨平而后折叠:广泛适用于宾馆、饭店、医院、铁路、大型社会洗衣厂等单位。
采用增彩触摸屏可编程电脑控制,每个工位具有统计功能,精确计量送料数量,便于经营者管理。具有工位送料功能工作效率高,节约人力成本。
具有布草吸风抹平功能,提高布草的平整度。
具有多工位送料功能,送布速度快,工作效率高;
具有滤带、滤刷以及吸风抹平多道滤布功能.保证布草展开平整;
出料平台可以自动伸缩,熨烫小件织物时无需移动机器,操作方便口展布机械手通过伺服电机驱动,使布草始终处于规定的送料位置。
And belongs to pioneering products in China.It is used to make linen, such as quilt cover and sheet,smooth and transfer them to ironing machine. It is well received by hotels, restaurants, hospitals, railway stations as well as washing plants in large communities and other units.
Ten inches' color touch screen programmable computer control adopted. Each station has statistical function, which can accurately meter feeding number that is convenient for management.
High efficiency and less labor costs thanks to multi-station.
Linen can be spread and fed evenly because of the function of smoothening and air absorbing.
No need to move the machine for small items because the output table can stretch out and draw back automatically.
Driven by servo motor, the transfer arms take and spread linen at the set feeding position
产品介绍:
产品展示

规格型号Model &norm

ZBQ-3000I

ZBQ-3300II

ZBQ-3300III

最大展布宽度(mm)Max folding

3000

3300

3300

最小展布宽度(mm)Least folding

1800

1800

1800

最大折叠速度(m/min) Folding speed

4-50

4-65

4-65

工作电压(VWashing  voltage

380V/50Hz

380V/50Hz

380V/50Hz

压缩空气压力(Mpa) Compressed airpressure

0.5-0.7

0.5-0.7

0.5-0.7

压缩空气耗量(m3/min) Compressed air

40

90

100

电机功率(kw)Dotor Power

3.34

4.93

4.93

整机重量(kg)Overall weight

1500

2250

2250

外形尺寸(mm)Exterior dimension

4325×2460×2310

4625×2460×2310

4625×2460×2310
